Getting Started: ServerTextControl and MailMerge in a .NET 8 Console Application on Linux with Docker and WSL

This article shows how to create a .NET 8 console application on Linux using Docker and WSL that uses the ServerTextControl to create a document and MailMerge to merge JSON data into the document. The document is saved as a PDF file.

Creating the Application

Make sure that you downloaded the latest version of Visual Studio 2022 that comes with the .NET 8 SDK.

1. In Visual Studio 2022, create a new project by choosing Create a new project.

2. Select Console App as the project template and confirm with Next.

3. Enter a project name and choose a location to save the project. Confirm with Next.

4. Choose .NET 8.0 (Long Term Support) as the Framework.

5. Enable the Enable container support checkbox and choose Linux as the Container OS.

6. Choose Dockerfile for the Container build type option and confirm with Create.


Adding the NuGet Packages

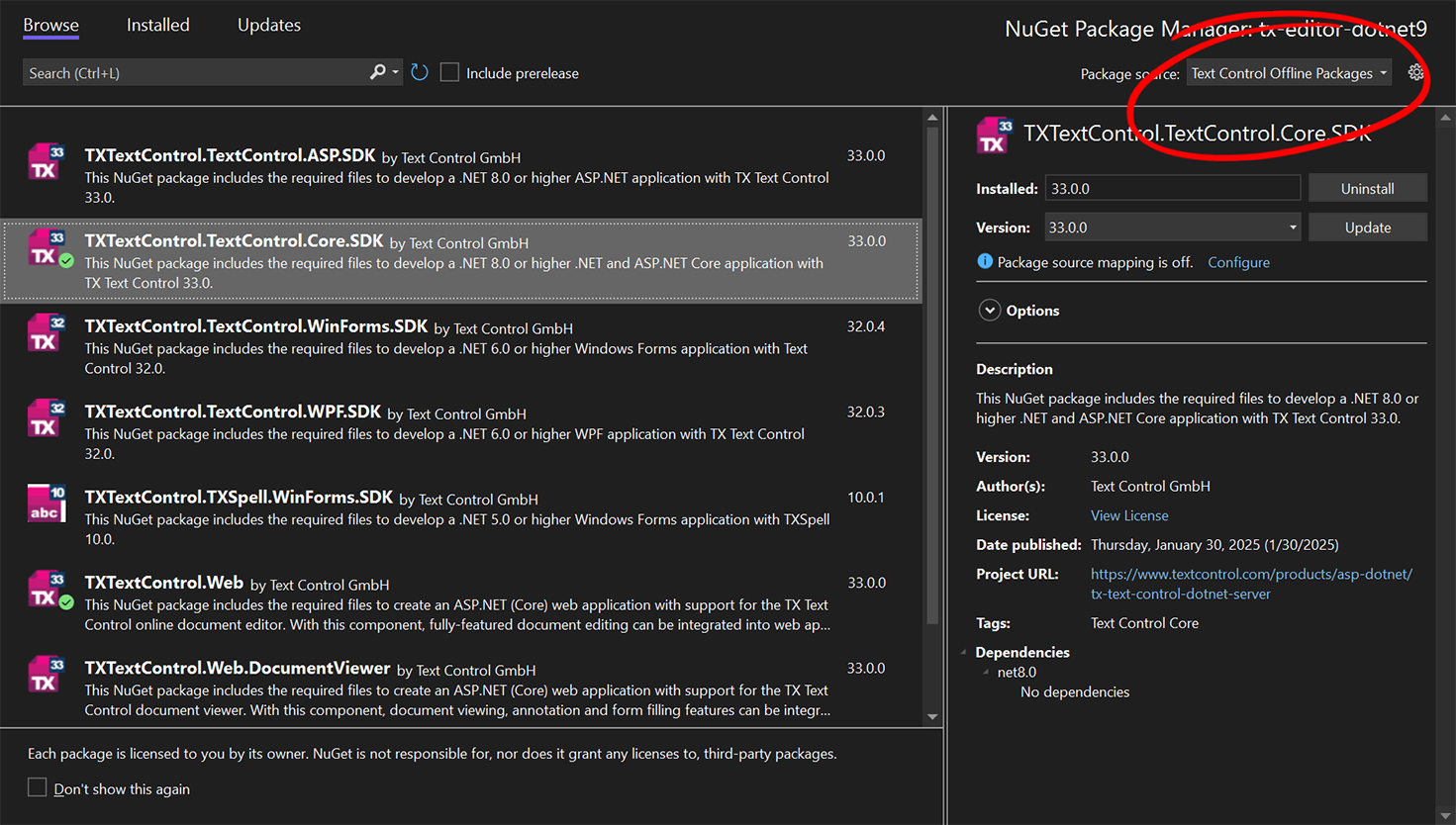

7. In the Solution Explorer, select your created project and choose Manage NuGet Packages... from the Project menu.

Install the following package:

  • TXTextControl.TextControl.Core.SDK


Using ServerTextControl and MailMerge

8. Find the Program.cs file in the Solution Explorer and replace the code with the provided snippet.

using (TXTextControl.ServerTextControl tx = new TXTextControl.ServerTextControl())
{
    // Create a new ServerTextControl instance
    tx.Create();

    // Adding static text with formatting
    TXTextControl.Selection sel = new TXTextControl.Selection
    {
        Text = "Welcome to Text Control
", // Static welcome message
        Bold = true // Apply bold formatting
    };
    tx.Selection = sel;

    // Adding a merge field for dynamic data insertion
    TXTextControl.DocumentServer.Fields.MergeField mergeField = new TXTextControl.DocumentServer.Fields.MergeField
    {
        Text = "{{company}}", // Placeholder text in the document
        Name = "company", // Internal name for the merge field
        TextBefore = "Company name: " // Prefix text before the field
    };

    // Add the merge field to the document
    tx.ApplicationFields.Add(mergeField.ApplicationField);

    // ---- Optionally load a template ----
    // If a predefined document template is available, uncomment the following lines
    /*
    TXTextControl.LoadSettings ls = new TXTextControl.LoadSettings
    {
        ApplicationFieldFormat = TXTextControl.ApplicationFieldFormat.MSWord // Preserve Word field format
    };
    tx.Load("template.docx", TXTextControl.StreamType.WordprocessingML, ls);
    */

    // Perform mail merge using JSON data
    using (TXTextControl.DocumentServer.MailMerge mailMerge = new TXTextControl.DocumentServer.MailMerge())
    {
        mailMerge.TextComponent = tx; // Link MailMerge engine to the text component

        // JSON data to be merged into the document
        string jsonData = "[{\"company\": \"Text Control, LLC\" }]";
        mailMerge.MergeJsonData(jsonData); // Merge the provided JSON data
    }

    tx.Save("results.pdf", TXTextControl.StreamType.AdobePDF);

    Console.WriteLine("Document created: results.pdf");
}

Run with Docker

9. Select Container (Dockerfile) as the startup profile and start the application.


Run with WSL

For a faster development experience, you can run the application in WSL (Windows Subsystem for Linux).

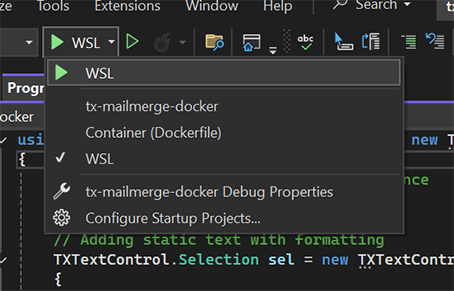

Select WSL as the startup profile and start the application.


Enable WSL (Windows Subsystem for Linux)

In case you haven't enabled WSL yet, follow these steps:

  • 1. Open PowerShell as an administrator.
  • 2. Run wsl --install to install the default Linux distribution.
  • 3. Restart your computer.

To set WSL 2 as the default version, run wsl --set-default-version 2 in PowerShell.
